Wood Working Machines

Edge Banding

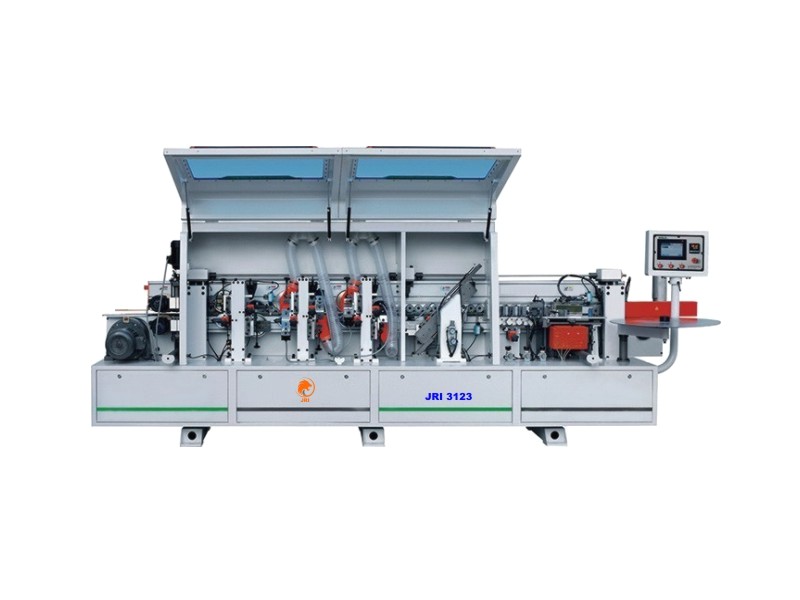

Automatic Edge Banding Machine


Model : JRI 3123-Automatic Edge Banding

Salient Features

  • High Precision Edge Banding / Sealing with auto adjusting technology
  • German Technology Sensors for high accuracy and reliability
  • Rexroth / Delta VFD devices for Frequency controls
  • Touch Screen HMI Control System for all functions & Selections at ease
  • Precision Pressure wheels for ensuring high quality edge taping
  • Electrically lifting of pressure beam, for high increased efficiency & accuracy
  • Additional Air Tank to prevent pneumatic accident in cyclic operations

Fully automatic edge banding of wood panels with fine quality by intelligent sensors & international branded components / systems for high efficiency and reliablity.

Enquire now

Technical Specifications

JRI 3123-Automatic Edge Banding

Description Model - JRI 3123
Work Size1(Length) 3400mm
Work Size2(Width x Height) 900mm X 1600mm
Motor Total Power 22hp
Electrical Lift Available
Conveyor Speed 14 / 20 / 23 Mtr /Min.
PVC Edge Thickness 0.4mm - 3.0mm
Workpiece Thickness 10mm - 60mm
Min. Workpiece Size(Length) Min. 120mm
Min. Workpiece Size(Width) Min. 60mm
Work Air Pressure 0.6MPa

Machine Special Features

  • image

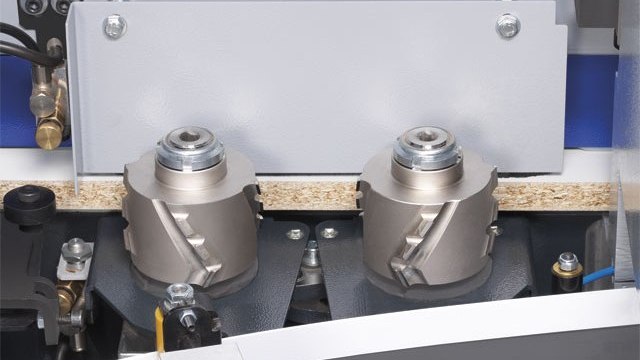

    Pre Milling

    Pre Milling of Panel

  • image


    Applying Glue on both Tape & Panel

  • image

    End Cutting

    End Cutting / Shapping Tape with Panel

  • image

    Panel Trimming

    Rough & Fine Trimiing

  • image

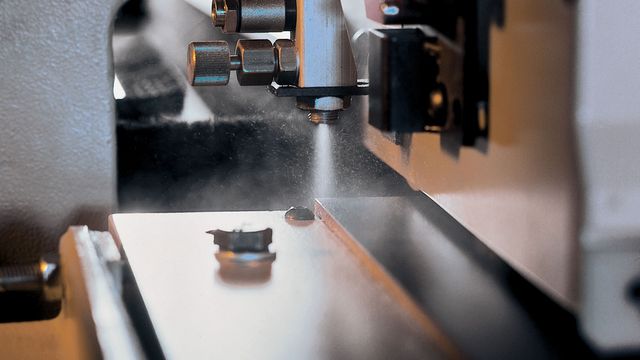

    Spary Unit

    Sparying & Cleaning of Panel

  • image


    Scarpping & Buffing for fine finish
