Automatic Panel Saw Machine

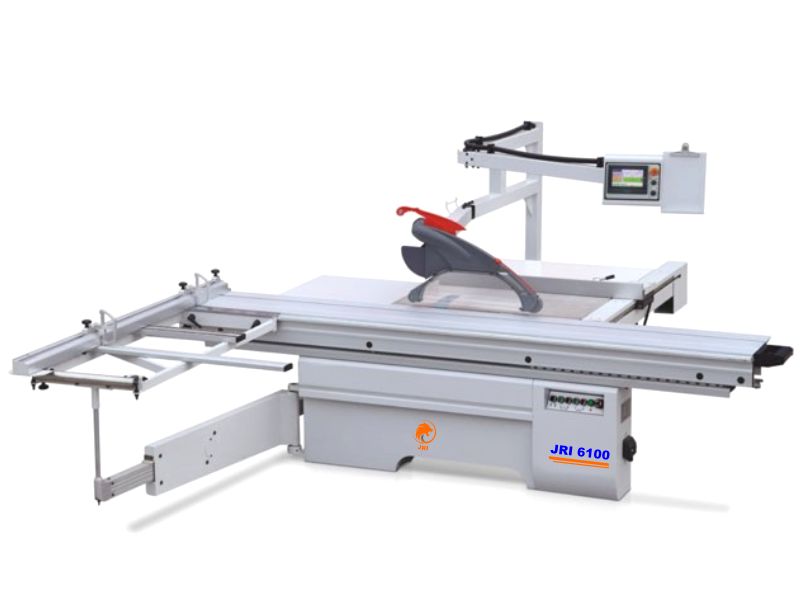

Model : JRI 6100-Automatic Sliding Panel Saw


Salient Features

  • PLC Based Automatic Controls, easily by Smart Touch Panel
  • Improved internal structure, ensure stable and precision working environment
  • Aluminum sliding table with round stick rail, ensure smooth running
  • Accurate & solid rip fence with fine adjustment function
  • Massive, adjustable Euro-Design saw blade protection extraction hood
  • Saw Blade chamber tiltable (90° - 45°) with digital control with height adjustable

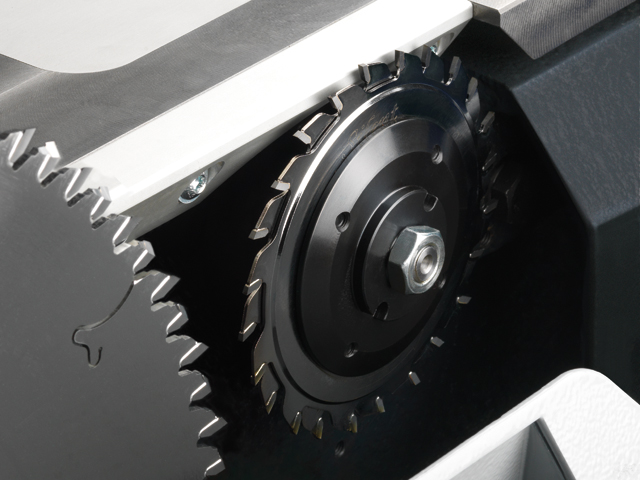

  • Heavyduty arm support with high precsion scoring adjustment

Heavyduty precision sliding table with linear bearing developed with advance technology with multi chamber system for max. rigidity of the double roller carriage Rip-Fence with fine adjustment can be set with pinpoint precsion by adjusting screw main motor given break and timing belt.

Enquire now

Technical Specifications

JRI 6100-Automatic Sliding Panel Saw

Description Model - JRI 6100
Dimension of Sliding Table 3200mm x 370mm
Gross Cutting Capacity 3200mm
Max. Saw Blade Diameter 350mm
Scoring Saw Blade Diameter 120mm x 120mm
Height of Cut 90mm
Main Saw Spindle Speed 4200RPM / 5600RPM
Scoring Saw Spindle Speed 8500RPM
Main Saw Motor Power 7.5 hp
Scoring Spindle Saw Motor Power 1 hp
Main Saw Up & Down Travel Electrical
Tilting Saw Table 0 - 45°

Machine Special Features

  • image

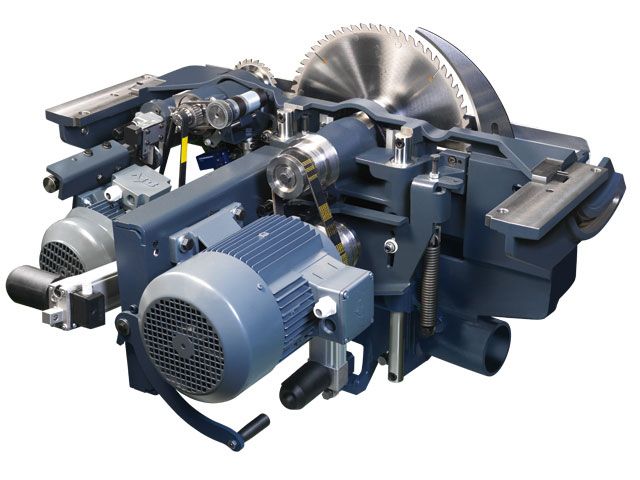

    Panel Saw Unit

    Electronic Controlled Motor with angle adjustment

  • image

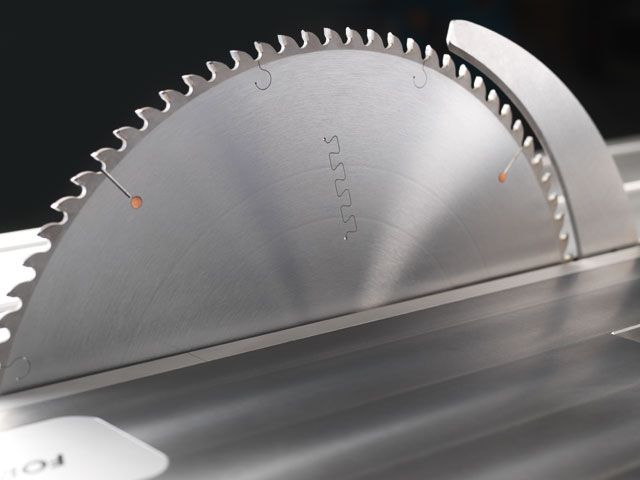

    Safety & Tiltable Blades

    Adjustable for angles with safety & ease

  • image

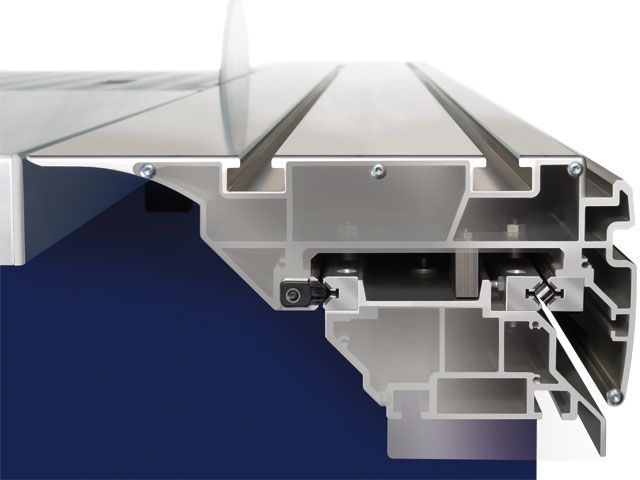

    Sliding Table

    Rigid sliding table with Roller Guideways for Accuracy

  • image

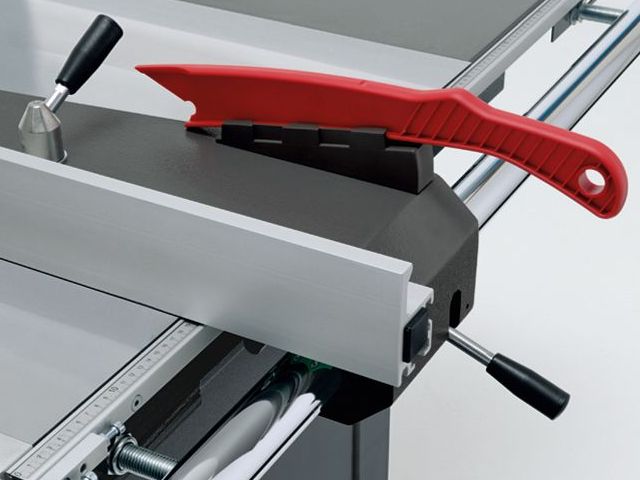

    Quick Locking System

    Easy Locking system for Saw Cutter Units

  • image

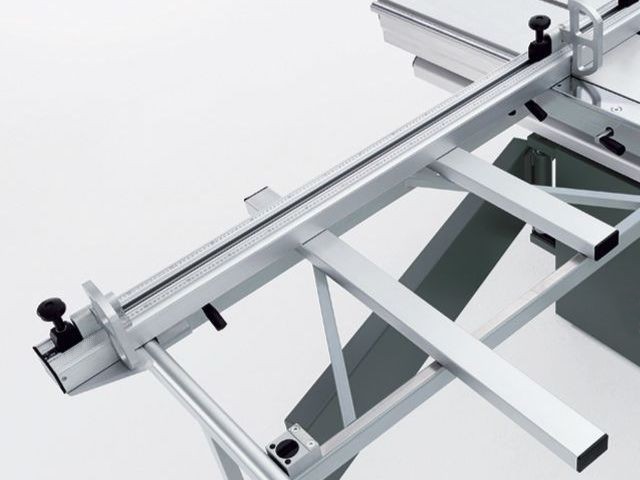

    Position & Measuring System

    Rib fence system for position & measurements

  • image

    Sliding Table

    Sliding table with ball bearing & locking points
