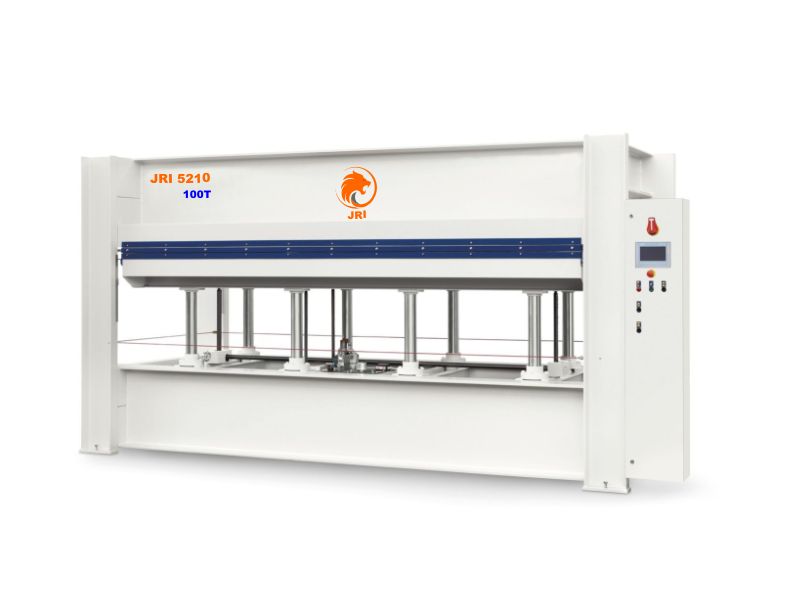

Model : JRI 5210-Hot Press Machine


Salient Features

  • Heating medium is thermic fluid oil ensures stable heating of platens
  • Hydraulic Operated high pressure press mechanism
  • Uniform pressure by both top & bottom platen design
  • Robust & heavy-duty design structure to handle uniform pressure
  • Manual & Auto System with Emergency Stop Control system
  • Motor Overload Protection by quality circuit breaker
  • Rigid construction of machine for thermal distortion

Suitable for various types of laminating of the fiber boards, decorative papers, plyboards, and other laminating sheets. Also can be used for Particle / MDF / HDF boards.
Appropriate machine to Modern / Modular Furniture & Board Laminating Industry Segment.

Enquire now

Technical Specifications

JRI 5210-Hot Press Machine

Description Model - JRI 5210
Max. Load on the Work table / Piece 100 Ton
Platen / Work table size 1300 x 2500mm
Max. opening of the platen 500mm
No. of Hydraulic Cylinder 6 Nos.
Bore Size of the Hydraulic Cylinder 100mm x 6
Hydraulic Pump Power 5.5Kw
Hot Oil Pump Power 2.2Kw
Heating Pipe Power 1 x 18Kw
Approximate Weight 6000 Kgs
