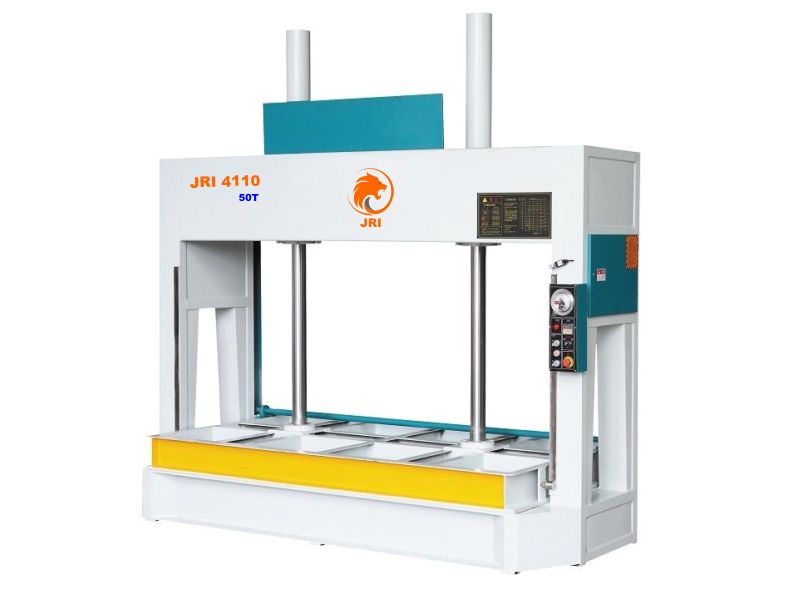

Model : JRI 4110-Cold Press Machine


Salient Features

  • Hydraulic Operated high pressure press mechanism
  • Uniform pressure by both top & bottom platen design
  • Smart control over pressure by rack & pinion mechanism
  • Robust & heavy-duty design structure to handle uniform pressure
  • Manual & Auto System with Emergency Stop Control system
  • Motor Overload Protection by quality circuit breaker
  • Digital HMI Controls & Display monitoring system
  • Anti wear & tear materials used for long life

Right machine for various types of laminations on composite wood, cork borad, fibers, hoenycomb boards and others. 4 Hydraulic Cylinders for ensuring the fine quality products meet global standards.
Appropriate machine to Modern / Modular Furniture & Board Laminating Industry Segment.

Enquire now

Technical Specifications

JRI 4110-Cold Press Machine

Description Model - JRI 4110
Max. Load on the Work table / Piece 50 Ton
Platen / Work table size 1300 x 2500mm
Max. opening of the platen 1000mm
No. of Hydraulic Cylinder 2 Nos.
Bore Size of the Hydraulic Cylinder 125mm
Installed Power 5hp
