Solid Wood Working Routers

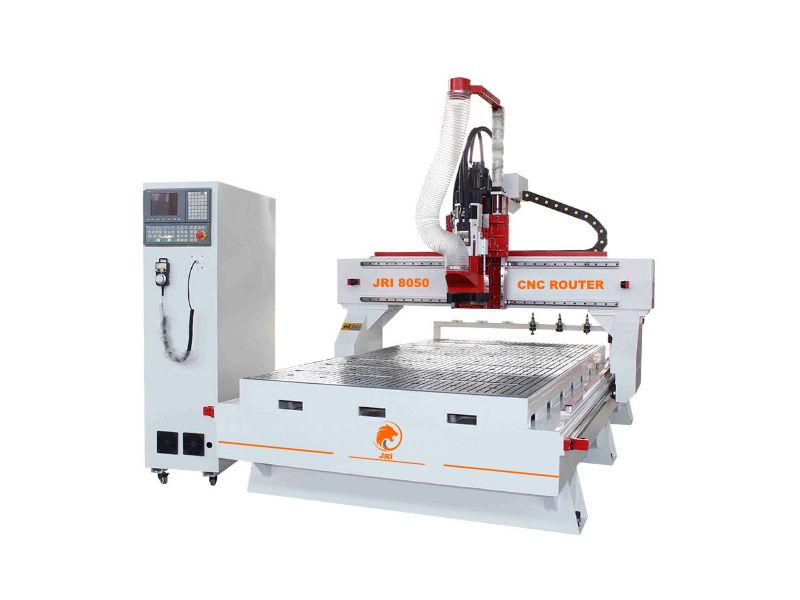

Model : JRI 8050-CNC Router


Salient Features

  • Advanced 3D Prediction Algorithm smooth line to ensure accuracy on curve
  • Advanced 3D Processing with Fast and Smoothly for Engraving & Cutting
  • Handheld HMI control is simple & easy to learn and use to endusers
  • Automatic Error Correction features ensures the long studio precision
  • Real-time Simulation of 3D images and realized off-line operation
  • Rigid & Solid Steal Construction with anti-vibration aging treatment
  • High Speed maching the curve & straight speed of 30m/min
  • High Precision & Accuracy ensured by Square Linear Motion Guide ways
  • XY axis controlled by Axis Drive System and Z axis with High Precision Ballscrew

High Speed Servo Motor with Planetary Gear box for high speed & accuracy. Advanced Handheld Control System with USB connection. This achieves ON-OFF Automation & Control over High Speed Machining.

Enquire now

Technical Specifications

JRI 8050-CNC Router

Description Model - JRI 8050
Working Area(X,Y,Z) 1300mm x 2500mm x 300mm
Table Structure Aluminum T Slot
Orbit TBI Square Orbit 20mm
Z Axis Ball Screw Germany TBI 25mm
Working Accuracy ±0.02/300mm
Repositioning Accuracy ±0.02/300mm
Maximum Working Speed 25000mm/min
Spindle Motor Power 6Kw HSD Air-cooled / 6hp Water-cooled
Spindle Speed 18000RPM / 24000RPM
Drive System Servo
NC Command Code G Code
Control System Rich Auto A11/NC Studio PCI Based
Vaccum Pump 7hp Water Cooled
Supply Voltage 380V AC / 50 Hz / 3 Phase
Work Piece Holding by Clamp & Suction
Oil System Manual

Machine Special Features

  • image

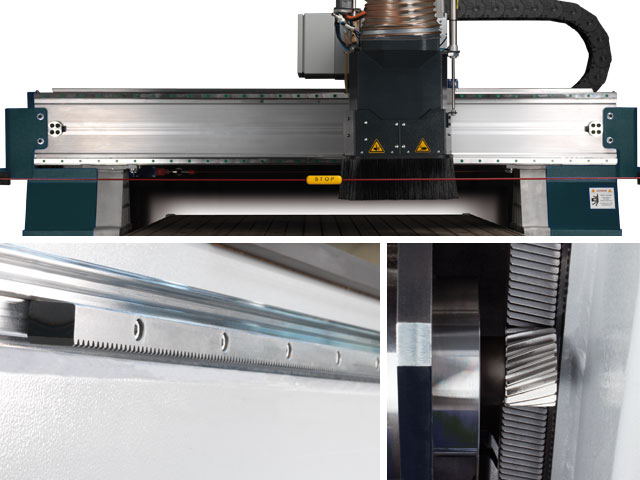

    Unique Portal Design Gantry

    Dual side drive for precision & accuracy

  • image

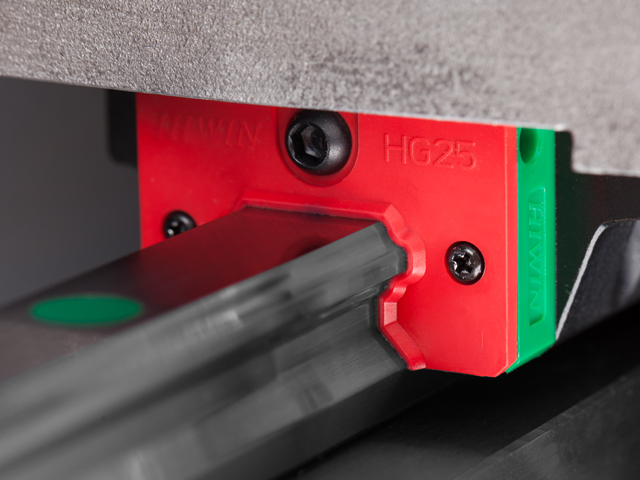

    Additional Sealent

    LM guides & carriage with additional sealent

  • image

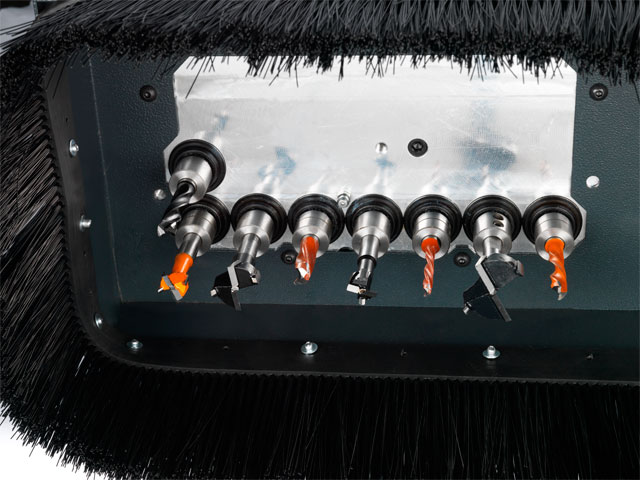

    Drilling Heads

    Wide range Vertical & Horizontal Drillheads

  • image

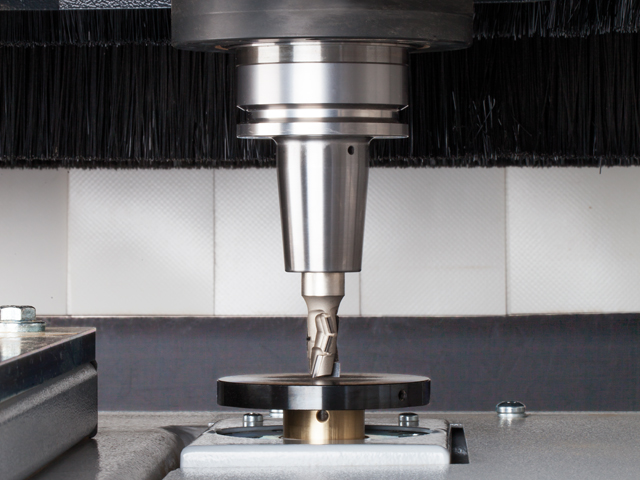

    Automatic Measuring System

    Easy parameter setting & tool length measurement

  • image

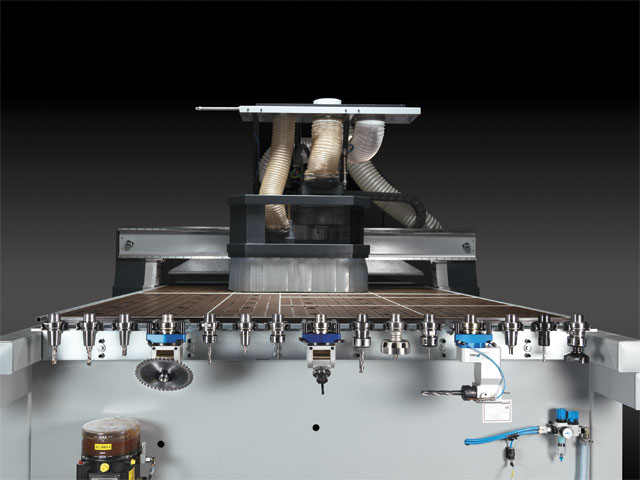

    Tool Changers

    No. of position tool changer on sides of machine

  • image

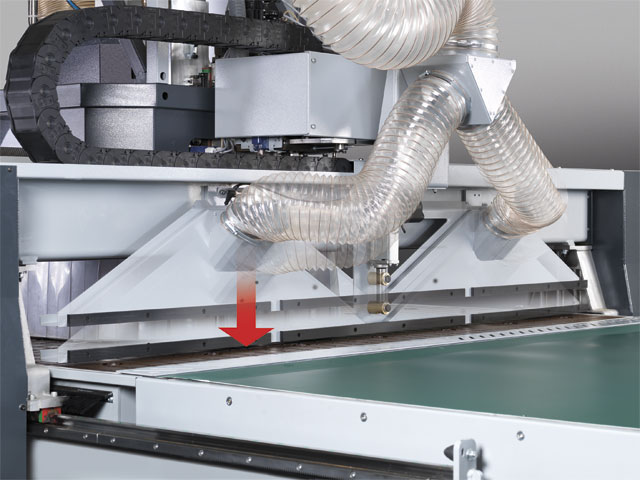

    Table & Pusher Extraction

    Height adjustable table & pusher units, reduces setting time
