Multi Drilling / Boring Machines

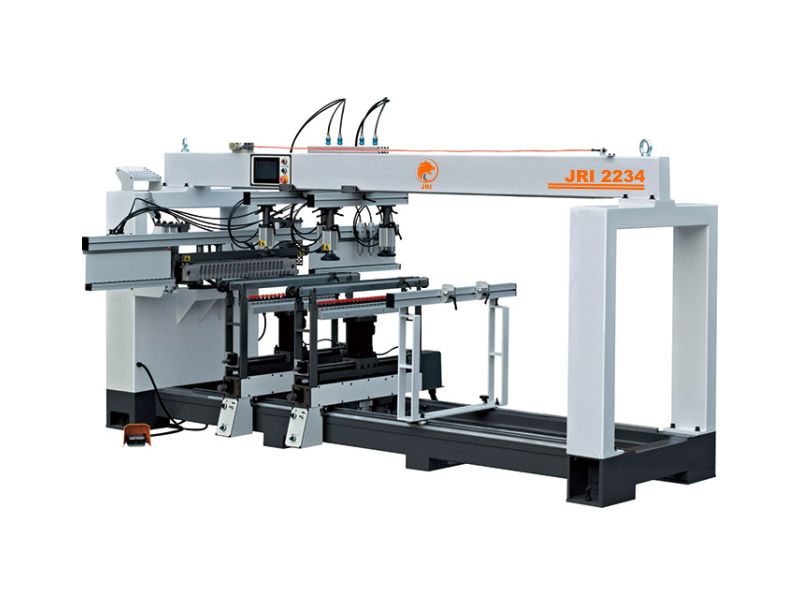

Model : JRI 2234L-Triple Head Drilling Boring


Salient Features

  • Pneumatic Operated Pressure Clamping Mechanism
  • Flexible control of speed over foot operated switch
  • Smart Touch PLC for easy to control & operate
  • Precise LED Display for Drilling Strikes Accurately Monitoring
  • Horizontal High Speed Drill for High Accuracy
  • Dedicated Locking System of Spindle Shaft
  • Rigid & Solid Steal Construction with anti-vibration aging treatment
  • Anti wear & tear materials used for sliding parts

Right Machine Solution for every budget & completely realiable for all professional purpose. Tailor made machine to meet Intuitive Application Concepts.
Modern & Distinct Design, Welded Chassis combination with solid cast iron table and rigid mechanism. Pneumatic workpiece holders and Ergonomically designed parts ensures it as perfect dowel boring machine with global standards.

Enquire now

Technical Specifications

JRI 2234L-Triple Head Drilling Boring

Description Model - JRI 2234L
Max. Width of the Work Piece 2450mm
Max. distance of 2 Horizontal Bores 640mm
Distance of Vertical Drilling Group 128mm
Max. Thickness of Work Piece 78mm
Max. depth of Horizontal Boring Head 40mm
Max. depth of Vertical Boring Head 70mm
Boring Spindle Speed(Max) 2800RPM (50Hz)
Vertical Boring Motor Power 1.5Kw
Maximum Working Pneumatic Pressure 0.6~0.8 Mpa
Machine Dimension 3400 x 2500 x 1800mm

Machine Special Features

  • image

    Tool Holding

    Multiple Drill-Bore Tool holding

  • image

    Vertical Drilling

    Vertical Drilling & Boring

  • image

    Horizontal Drilling

    Horizontal Drilling & Boring
